Nos of sprinkler and hydrants in 20ha plot

32 Sprinkler in working conditions and 32 sprinkler in advance mode and 35 hydrants

Sprinkler lateral pipeshift able / portable/movable and fixed pipes

QC(Quick coupling) HDPE pies 63 mm PN6.3 one end male and other, end female with metal latch type clamp for hand moved system (the old system) For new system, 90PN10, 371Lmeters of many line pipes its fixedsystemand 90PN 10, 1520m for lateralof sub many line; Water application pipes of 50mm PN 10 is 2429m

Sprinkler submain (buried)

HDPE pipes of 90 mm PN 10 buried underground and 10 Sprinkler ydrants are taken off ar every 24m distance on each submain.

Sprinkler hydrant

G.I valve 2", HDPE tee 2 inch, G.I 2inch pipes - G.I 2inch elbow are taken off every22m distance at each water application (HDPE pipes 50mm PN10)- Hydraulic valve with pressure pilot at each submains Hydraulic valves(3") with pressure pilot are provided at each submain for on off purpose and pressure regulation purposeas per the requirement.

Butterfly valve 3" - Flush valve

Butterfly valves 3" are provided at each submain end to flush out the submain

Butterfly valve 3" - Flush valve

Air release valves at submain

Pvc air release valves 2" are provided on HDPE mainline of 110mm

HDPE main lines

HDPE pipeline of 110mm ON 10 is provided as a feeding main to all sprinkler submains(old system), HDPE pies of 90mm PN 10 is submain pipes fedding lateral pipes of 50mm PN10(new system)

Non return valve

C.I Non return valve 4" provided on mainline to pre4vent water hammer and black pressure (old system and new system)

Auto Quick Pressure Relief valve

Auto Quick Pressure Relief valve 2" is provided after the pump unit to release the sudden built of pressure in the systemso that to prevent the pipeline from breaking (old system); Check valve HDPE type 3" is installed on delivery pipe and connected to the new systemold system. 35 pcs of check valves HDPE type 2" is fixed on lateral line are provided feeding to all hydrants.

Manual Bypass cum Pressure relief valve

Manual By-pass cum pressure relief valce 3" is provided on two distributors line after the pump uni to release the sudden built of pressure in the system so that to prevent the pipe line fro breaking.Filtration unit A screen filtration unit (casing pipe) Dia of 200 mmfilter the water from physical inpurities like silt, clay, sand, solid particles, etc.

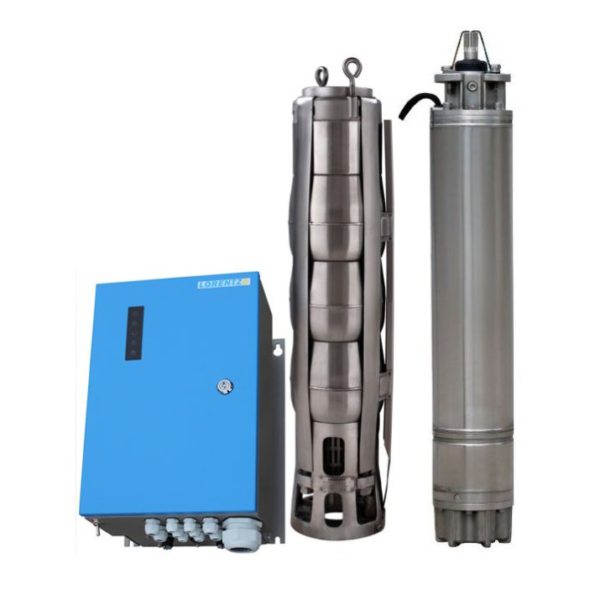

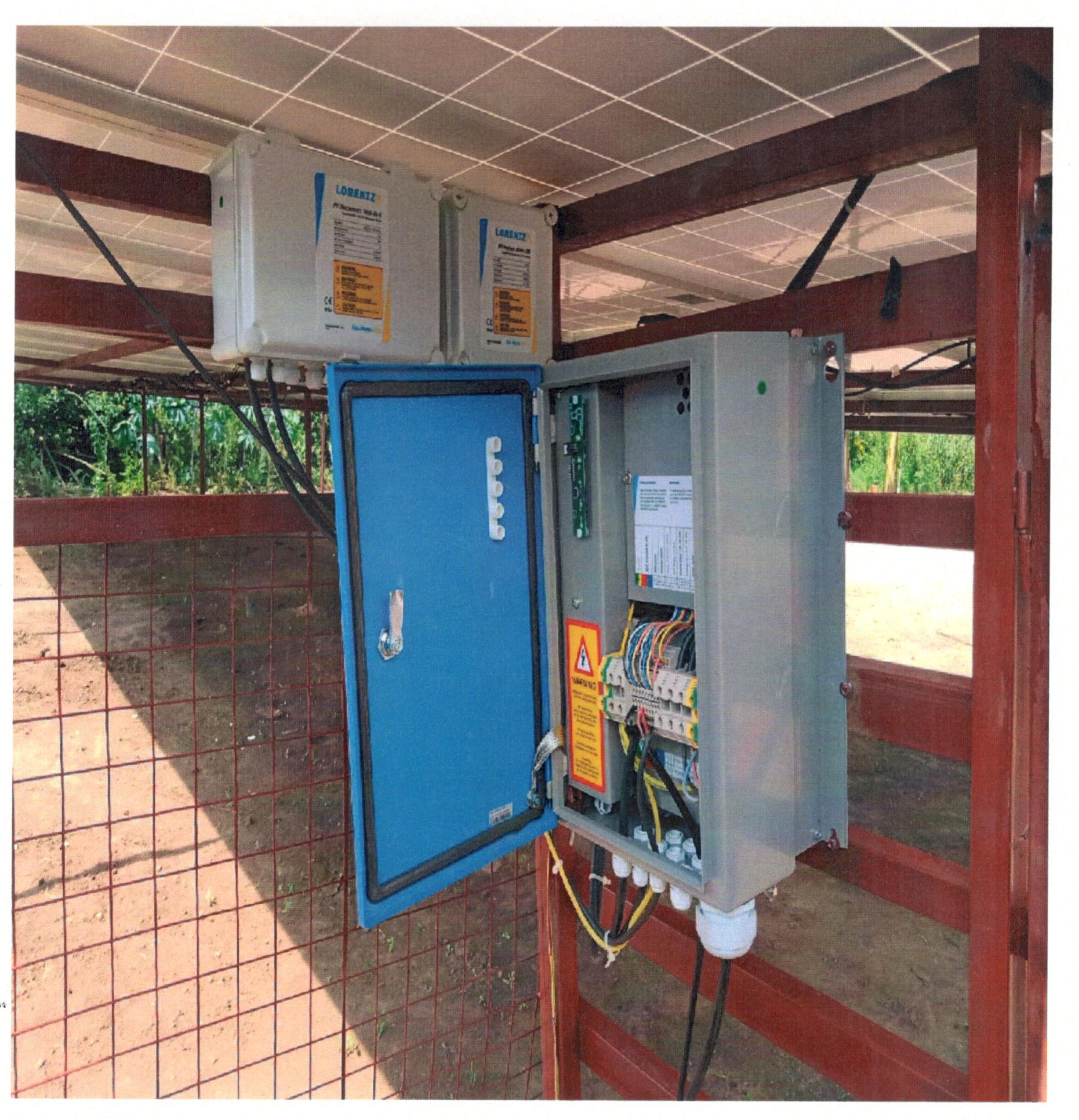

New submersible solar pump unit

It is proposed to provide on unit of AC submersible solar pump of 13.9 Kw head max 80 m, rated flow 28m3 per hour. With the MPTT charger of 14kw, 380v(new system) for now the old system is not operrational causing of the MPTT damage

Nos of solar pump set

One new set under working mode and two sets kept as a standby after repairing

Hydrants

15 ha installed the hydrants system for surface irrigation

Hose pipes

Pvc hose pipes with wire in side 1,5 mm size end of the pipes fixed the spray nozzle a hand

HDPE lateral lines

HDPE pipeline of 63,50 mm PN10 is provided as a feeding main to all, hydrants connected the hose pipes.

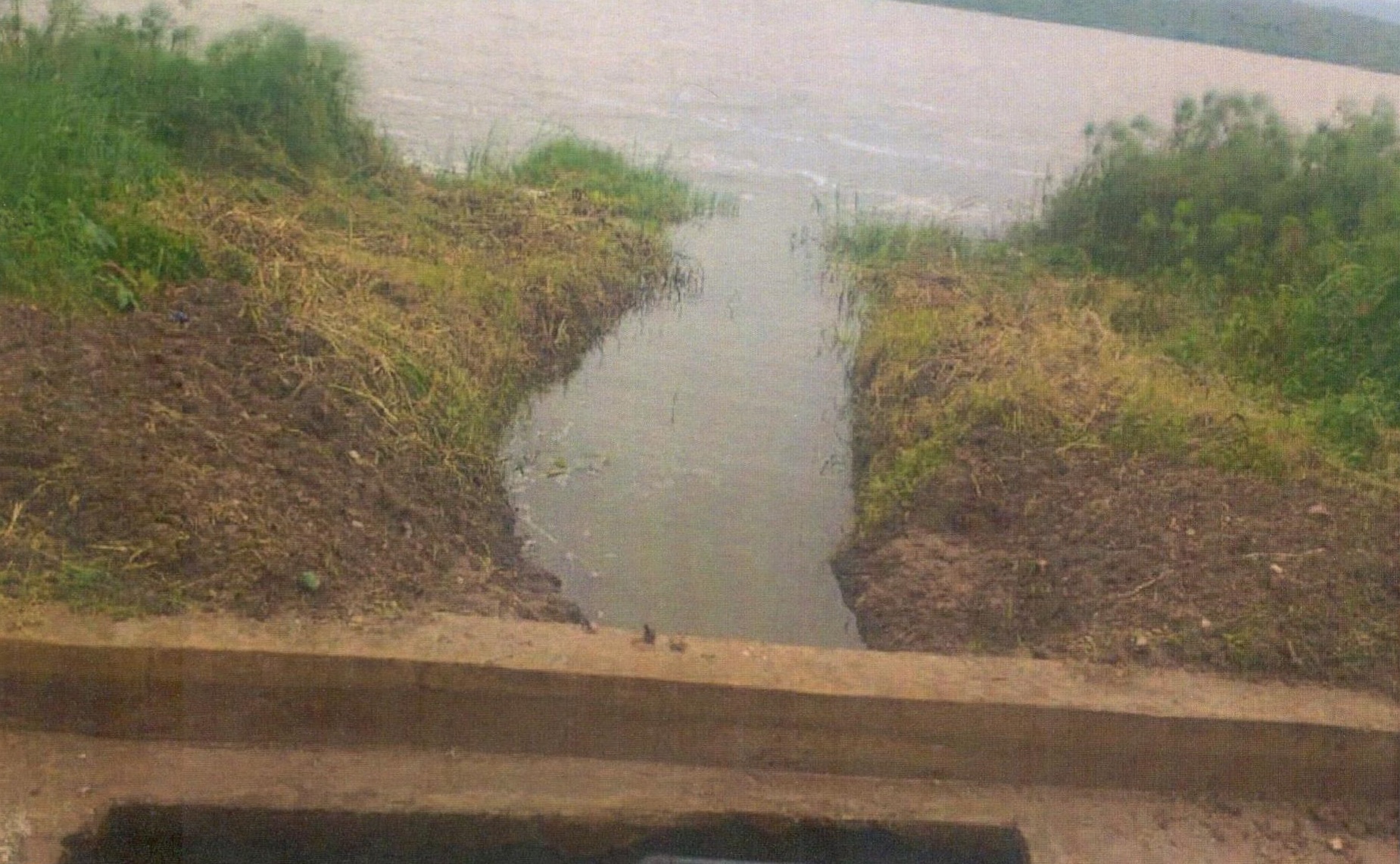

Water reservoir

Excavation of two water pond each 250m3 installed upper pf the land

Dam Sheet

The tensile strength: >=300N/MM2, the tear strength: >=18/MM2, the elongation at break: >=394%, the shrinkage: >=0.0%, the bursting strength:30 DAN/CM2, the UV treatment: 100%, the recylabe: 100%, the thickness: 0.9-1.0MM (One millimeter), made of |HDPE material.

Dam sheet coverage

Dam sheet covering with iron sheet with tubes and sheet structure suppoertd concrete structure.
